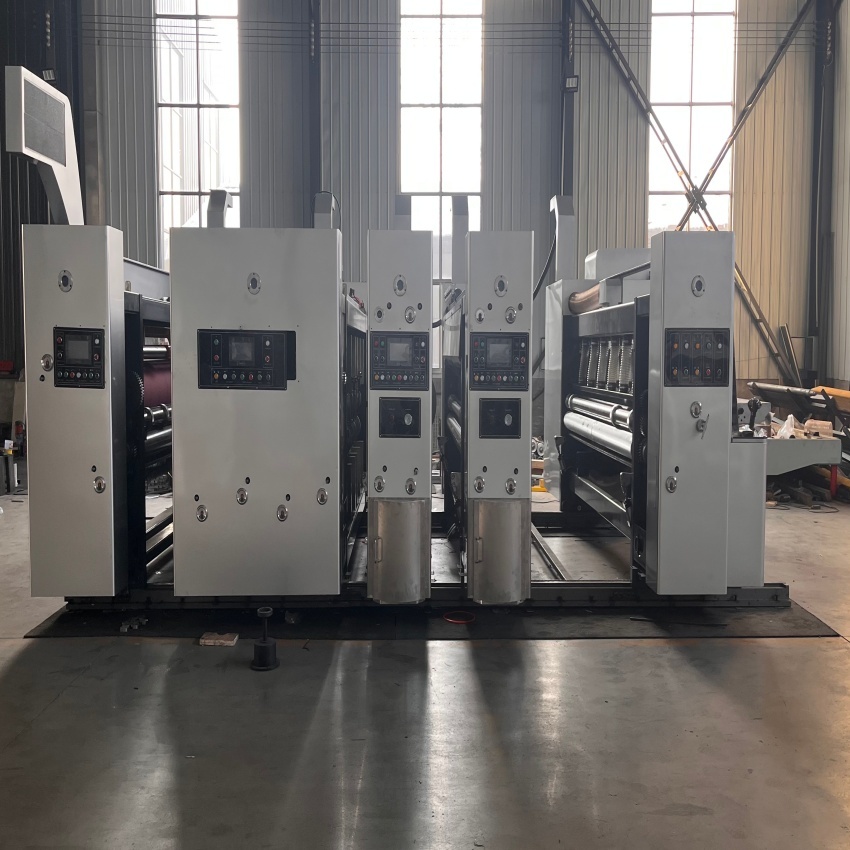

Corrugated Carton Flexographic Printing Machine Double Slotter Rotary Die Cutter

This integrated, high-efficiency post-processing machine for carton production combines printing, slotting, and die-cutting into one streamlined operation. Utilizing flexible photopolymer plates for water-based ink printing and a dual slotting mechanism, it achieves precise carton forming and serves as a core production asset in modern carton packaging plants.

The machine consists of four core units that enable one-stop production from board to finished carton:

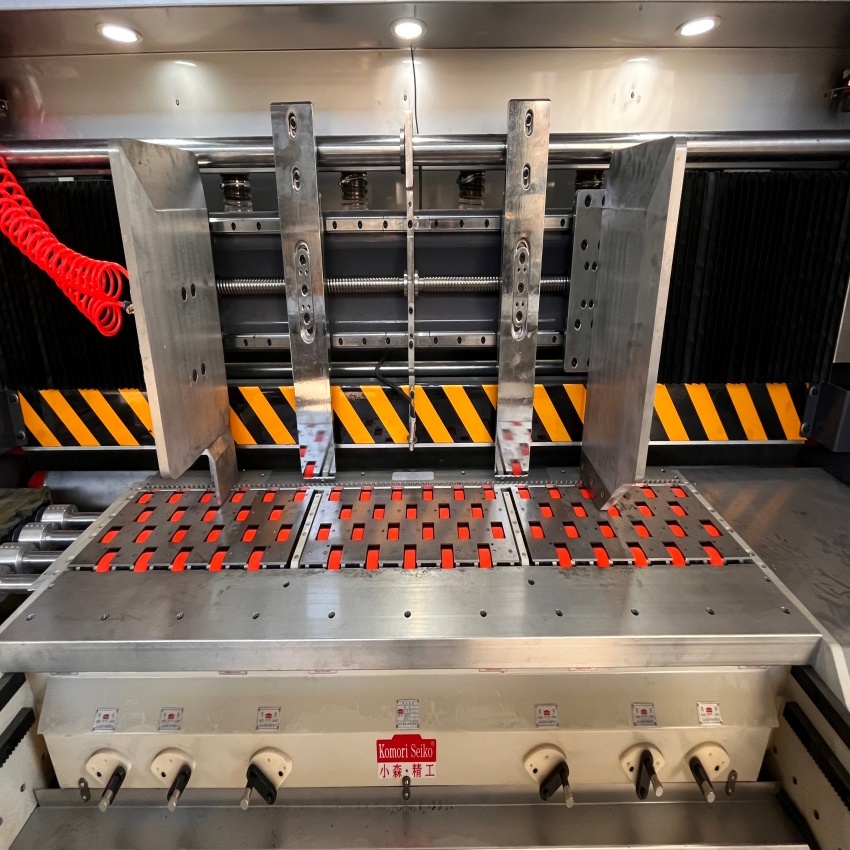

• Feeding Unit: Employs a front vacuum feeder or double air-box feeding system, effectively handling thin or warped boards while preventing surface damage
• Printing Unit: Uses flexible photopolymer plates with ceramic anilox roller and doctor blade system to deliver high-definition, uniform water-based ink prints

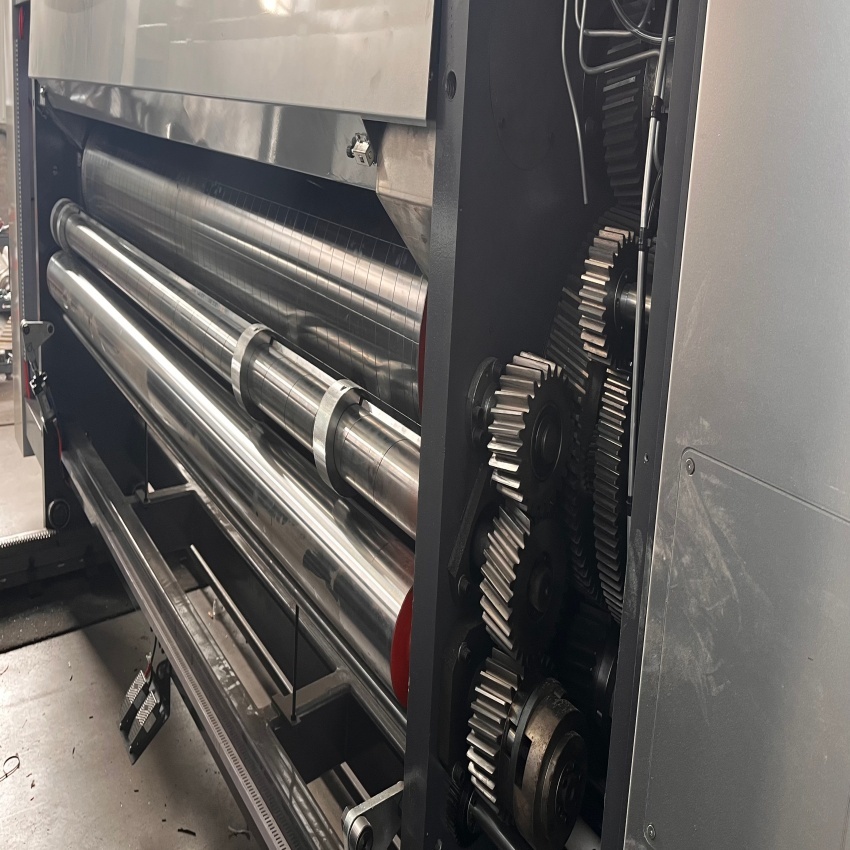

• Slotting Unit: Features dual slotting with upper and lower shaft or multi-axis structures, capable of simultaneous trimming, slotting, and creasing

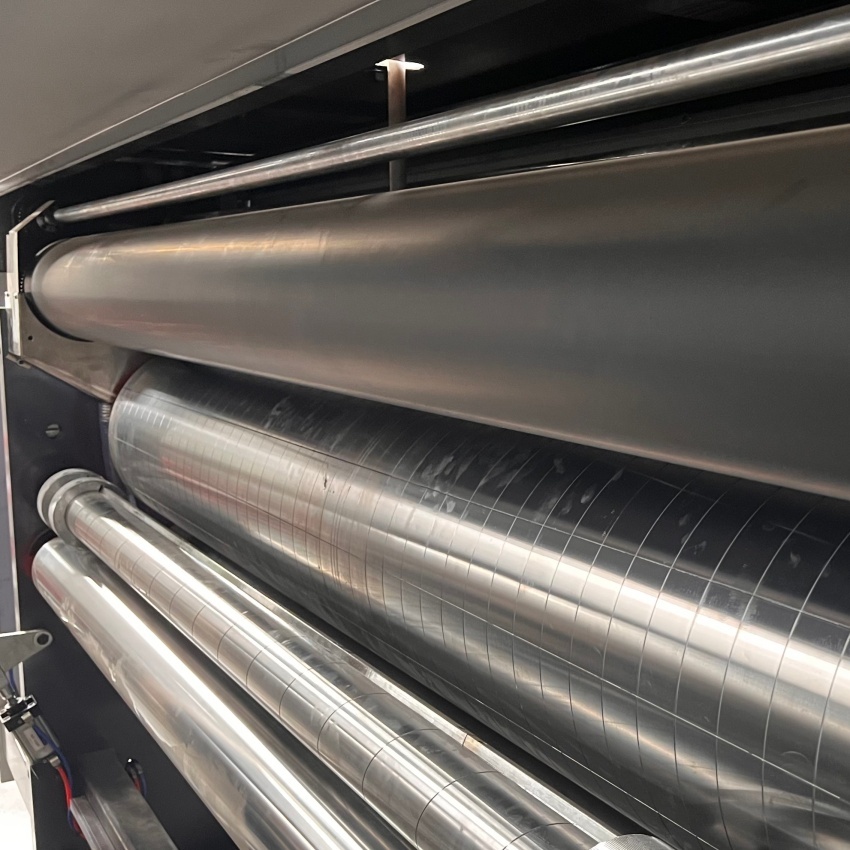

• Die-Cutting Unit: Utilizes rotary die-cutting technology to form complex carton shapes in one pass

• High Production Efficiency: Integrated process reduces material handling with speeds reaching 150-180 sheets per minute
• High-Quality Printing: Register accuracy of ±0.5mm with clear, vibrant prints comparable to traditional color printing
• Smart Operation: Full PLC computer control system with one-touch setup, job storage, and automatic counting
• Eco-friendly & Cost-effective: Uses water-based inks free of VOCs with minimal ink waste
• High Adaptability: Processes 3-ply to 7-ply corrugated board with thicknesses from 2mm to 11mm

Adopts moisture-proof and shock-proof packaging suitable for long-distance road transportation and various weather conditions. A full set of maintenance and operation manuals is included.

• Professional technicians assigned for equipment installation, commissioning, and operator training
• Detailed installation and operation manuals provided with all equipment
• Free plant layout design available upon client request
• One year quality warranty with free maintenance and replacement of wearing parts
• Long-term maintenance service and cost-price parts supply after warranty period
• 24-hour complaint response system with on-site support when needed
