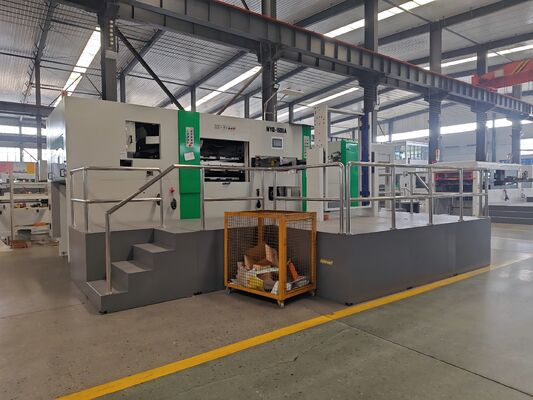

High Speed Full Automatic Die Cutting and Creasing Machine for Precision Corrugated Carton Processing

The MYQ1500SA High Configuration High Speed Full Automatic Die Cutting and Creasing Machine represents advanced manufacturing technology for precision die cutting operations across various materials including paper and corrugated board.

• Extra feeder processes paper and corrugated board, equipped with BECKER vacuum pump
• Central monitor installation for easy viewing of back section
• Pre-paper pile design and special pneumatic bench save significant time
• Non-stop sampling system enables board accuracy checks without machine stoppage

• Additional brush wheels and pressing wheels for thin paper and corrugated board operation
• Advanced push and pull lay registration ensures die cutting precision
• Rikko light front lay detection system prevents slanted paper from entering main body

• Automatic centralized lubricating system with main chain lubrication controlled via HMI
• Patented shock absorption system prolongs main body life and increases pressure capacity
• Taiwan-made intermittent gearbox ensures accurate registration and reduces gripper attack

• Diecutting chase accurately fixed by pneumatic lock system
• Diecutting plate insertion and removal via air floating device
• Electric clutch system of main chain ensures steady operation during high-speed stops
• Main chain and assist chain periodically lubricated via PLC control
• Protection window maintains main body cleanliness
• Lightweight aluminum alloy gripper bars with Renold UK or IWIS GERMANY chains ensure precision

• Back and side aligning paper systems ensure orderly automatic paper feeding
• Simple structure with quick operation capabilities
• Electric back aligning paper adjustment - three times faster than manual operation
• Front machine monitoring of back aligning paper
• Double detection switch monitors paper order
• Sampling capability during machine operation
• Automatic alarm when paper collecting reaches capacity
• Quantitative paper setting from 10 to 9999 sheets with automatic cutoff at set value

• Moisture-proof and shock-proof packaging suitable for long-distance road transportation
• Designed for various weather conditions
• Includes full set of maintenance and operation manuals
