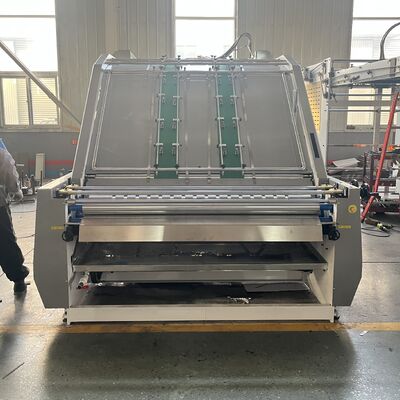

This advanced film laminator machine utilizes PLC program for automatic control and features an intuitive touch screen interface for efficient operation. Equipped with frequency control for smooth, precise laminating, it delivers high accuracy and reliable quality. The machine holds ISO9001 quality system certification and European CE safety certification, ensuring compliance with international standards.
As a domestically initiated product, it features multiple patents including ZL2009 2 0075540.1 and ZL2010 0 0559614.0, along with PLC control system software version 1.0 (computer software copyright registration No. 2009SR035736). The exterior features durable electrostatic powder coating that meets environmental standards while providing an attractive appearance.
| Parameter | Specification |
|---|---|
| Machine Size | 13960 × 2250 × 2550 mm |
| Frequency | 50/60Hz |
| Max. Feeding Size | 1320 mm |
| Total Power | 16.725 KW |
| Bottom Paper | A, B, C, E Flute Corrugated Cardboard ≥ 400g/m² |
| Max. Thickness | 8 mm |
| Surface Paper | 250 ~ 450 g/m² |
| Min. Laminating Size | 400 × 400 mm |
| Working Speed | 0 ~ 5500 sheets/hour |
| Weight | 5.45 T |
The Gerun 1300 Flute Laminating Machine is designed for laminating cardboard and corrugated paper, as well as cardboard-to-cardboard lamination. It enhances finished boards by making them smarter, more attractive, and stronger. Ideal applications include:
The Gerun Flute Laminating Machine (Model 1300) offers flexible customization with maximum laminating size of 1100 × 1300mm and maximum feeding size of 1320mm. Powered by 380/220V supply at 50/60Hz frequency for stable operation worldwide.
Order Details: Minimum order quantity: 1 set | Pricing: Negotiable based on requirements | Packaging: Plastic and wood materials | Delivery: 30 days | Payment: T/T | Supply Capacity: 30 sets per month
Our comprehensive support includes installation guidance, operation training, and maintenance procedures to maximize productivity. We provide troubleshooting services, software updates, and hardware upgrades to maintain optimal performance.
Training sessions for operators and maintenance personnel cover machine features, safety protocols, and best practices. Detailed user manuals and technical documentation are supplied, with readily available spare parts and consumables to minimize downtime.
Extended maintenance contracts include routine inspections, preventive maintenance, and priority service to prolong machine lifespan and reduce unexpected breakdowns.
Packaging: Each unit is securely packaged with protective foam and plastic film, placed in sturdy corrugated cardboard boxes with custom foam inserts. All accessories and manuals are included and organized to prevent damage.
Shipping: Worldwide shipping options including standard ground, expedited air freight, and express courier services. Tracking information provided upon dispatch with logistics support for any shipping inquiries.
