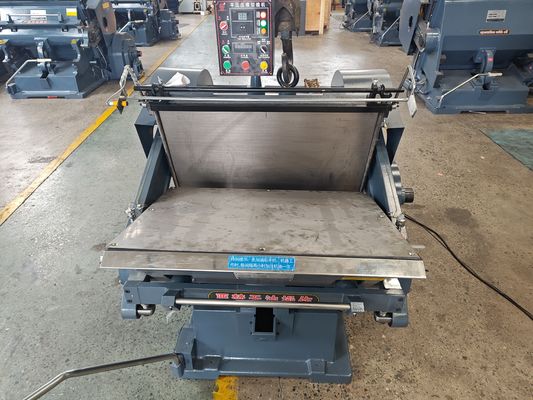

Heavyduty Manual Cardboard And Corrugated Board Creasing And Die Cutting Machine
| Description |
ML930 Die Cutting and Creasing Machine
Functions and Characteristics:
1) Equip with four insurance parts and four functions. The insurance part including gantry insurance,triangle insurance,hand shank insurance and automatic light-operated insurance to makes the machine safety and reliable.
2) The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and reliable.
3) Adjustable template makes the plate loading, unloading more easily. Disposition: Automatic Centralized oil supplying.
4) Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted.
| Parameters |
|
Model |
ML930 |
|
Max effective Size |
930*670 mm |
|
Working speed |
23±2 sheets/min |
|
Creasing length |
<25 m |
|
Motor power |
4 kw |
|
Net weight |
3000 kg |
|
Overall size |
1800*1600*1600 mm |
| Packing and Shipping |
1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.
2. Transportation and various types of weather conditions. A full set of maintenance and operation.
3. Manuals is included.
