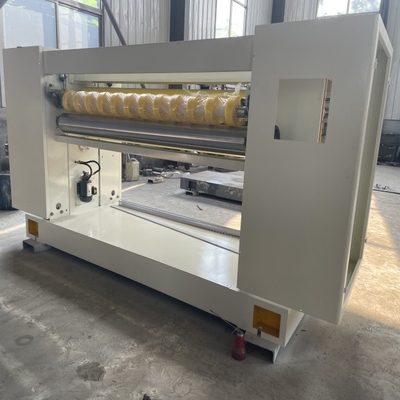

محطم NC لخط إنتاج الورق المقوى يستخدم أنظمة تحكم محركات سيرفو المستوردة

NC-100 NC cutter helical knives

Structural feature:

• It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orderswithout stop,And enables networked computers to facilitate production management.
• Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
• Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life
• Around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage
• This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money .
• Precision adjustable no gap gear to ensure precise blade engagement, running balance.
• Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling
• Knife roller: fine quality forged steel material, the balanced, with good stability.

Roller diameter parameters:

• Cross on the knife shaft center distance:￠216mm
• Before the lower conveying roller diameter ￠156mm
• After the lower conveying roller diameter: ￠156mm
• The front of the platen roller diameter: ￠70mm
• The front of the platen roller diameter: ￠70mm

Note: After all have been grinding rollers, hard chrome plated at (on except under the knife shaft) dealing

Power motors and electrical parameters:

• main drive motor power:18.5KW Full AC synchronous servo
• Before and after feeding motor power:3KW(Frequency Control)
• Lubricating oil pump motor power:0.25KW

Mainly purchased parts, raw materials and origin:
